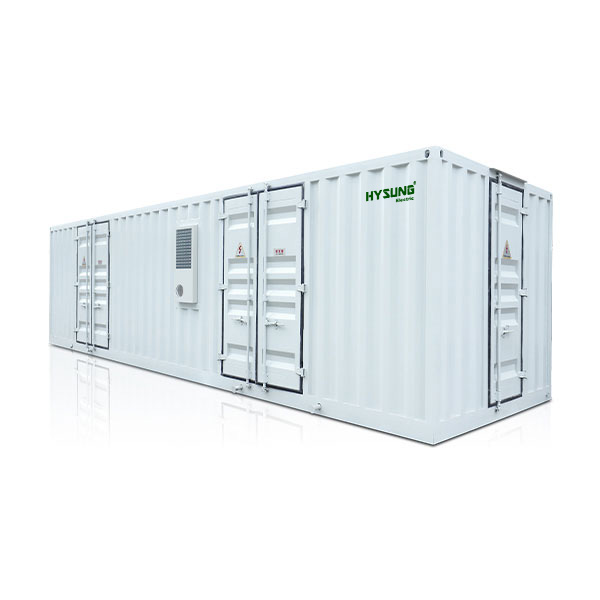

HCGFYZC Modular Intelligent Prefabricated Cabins

产品概述  Overview

提供变电站全模块化装配式解决方案，使占地面积减少30%，系统设计、安装和调试周期缩短70%；采用全金属预制舱，配置智能环境控制系统，可适用于高温、高湿、沙尘等复杂的气候和地理环境；支持eCloud 能源云平台接入，提供远程健康诊断、故障分析、维护指导等功能，实现变电站的无人值守和设备的全生命周期管理；运行可靠，品质保证。

Provide a fully modular assembly solution for substations, reducing floor space by 30% and shortening system design, installation, and debugging cycles by 70%; Adopting all metal prefabricated cabin and equipped with intelligent environmental control system, it can be suitable for complex climate and geographical environments such as high temperature, high humidity, sand and dust; Support eCloud energy cloud platform access, provide remote health diagnosis, fault analysis, maintenance guidance and other functions, and achieve unmanned substation and full lifecycle management of equipment; Reliable operation and guaranteed quality.

技术参数  Technical Parameter

风力发电、光伏发电、海上风电、分布式光伏发电等新能源领域升压站

电网10kV ～ 40.5kV 变电站

大型厂矿企业自用变电站

Booster stations in new energy fields such as wind power, photovoltaic power, offshore wind power, and distributed photovoltaic power generation

10kV~40.5kV substations in the power grid

Substation for self use by large factories and mining enterprises

使用环境  Usage environment

环境温度范围为：-40℃ ~+85℃；

安装地点：户外；

海拔一般不超过3000m；

防秽等级：Ⅲ级；

户外风速不超过35m/s；

防震：水平加速度0.3m/s2；

垂直加速度不大于0.15m/s2；

超出上述正常使用环境条件时，本公司可根据用户使用要求进行个性化设计。

The ambient temperature range is -40 ℃~+85 ℃ ;

Installation location: outdoor;

The altitude generally does not exceed 3000m;

Pollution prevention level: Level III;

Outdoor wind speed not exceeding 35m/s;

Shockproof: Horizontal acceleration of 0.3m/s2;

The vertical acceleration shall not exceed 0.15m/s2;

When the above normal usage environment conditions are exceeded, our company can customize the design according to the user's usage requirements
