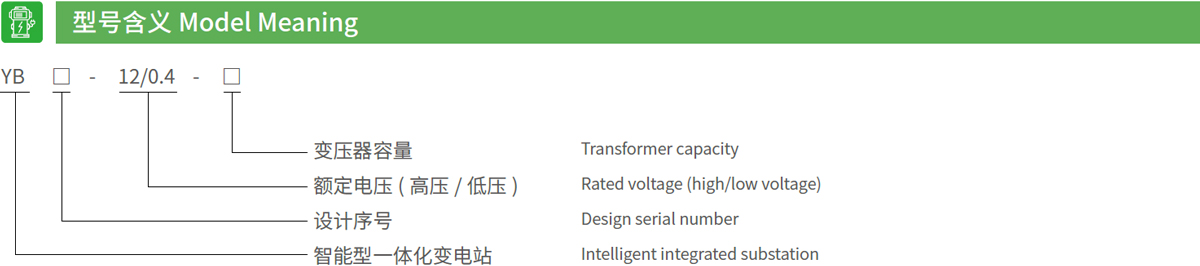

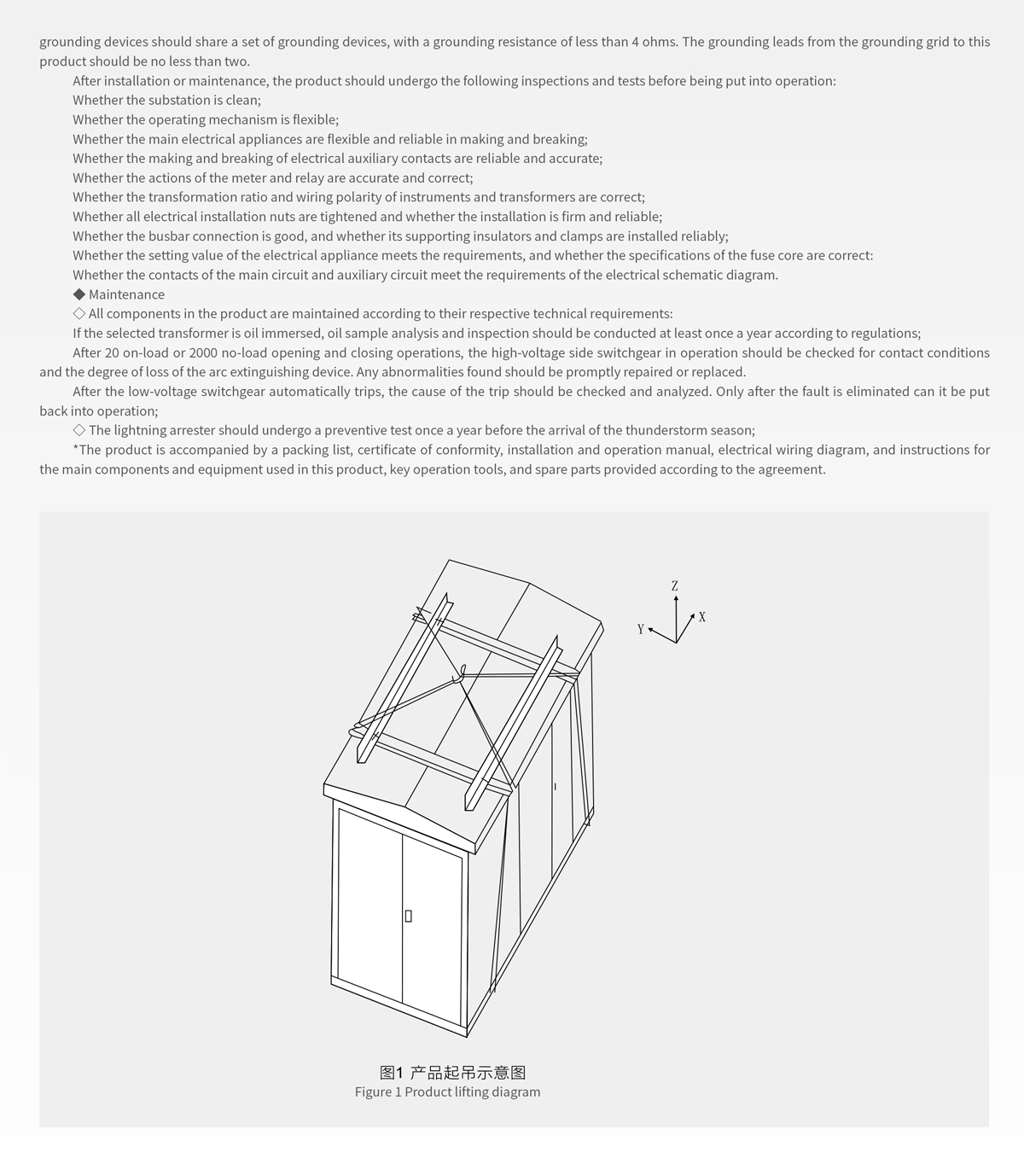

YB□-12/0.4 Intelligent Pre-assembled Substation

产品概述  Overview

广泛用于城市电网改造、住宅小区、高层建筑、工矿、宾馆、商场、机场、铁路、油田、码头、高速公路以时及临性用电设施等户内外场所。

Widely used in urban power grid renovation, residential communities, high-rise buildings, industrial and mining, hotels, shopping malls, airports, railways, oil fields, docks, highways, temporary electricity facilities, and other indoor and outdoor places.

功能及特点 Function and characteristic

◇ 高压开关设备、变压器、低压开关设备三位一体，成套性强;

◇ 高、低压保护完善，运行安全可靠，维护简单;

◇ 占地少，投资省、生产周期短、移动方便;

◇ 接线方案灵活多样;

◇ 结构: 蜂窝式结构双层( 复合板) 外壳牢固，隔热又散热通风、美观、防护等级高，外壳材料有不锈钢钦合金、铝合金、 冷轧板、彩钢板可选;

◇ 型式多样: 通用型、别墅型、紧凑型等多种样式;

◇ 高压环网柜内可装配网自动化终端(FTU) 实现短路及单相接地故障的可靠检测，具备“四遥”功能，便于配网自动化升级。

◇ High voltage switchgear, transformers, and low-voltage switchgear are integrated, with strong completeness;

◇ Complete high and low voltage protection, safe and reliable operation, and simple maintenance;

◇ Small land occupation, low investment, short production cycle, and convenient movement;

◇ Flexible and diverse wiring schemes;

◇ Unique structure: Unique honeycomb structure with double layer (composite plate) shell that is sturdy, insulated and ventilated, aesthetically pleasing, and has a high level of protection. The shell materials include stainless steel alloy, aluminum alloy, cold rolled plate, and color steel plate;

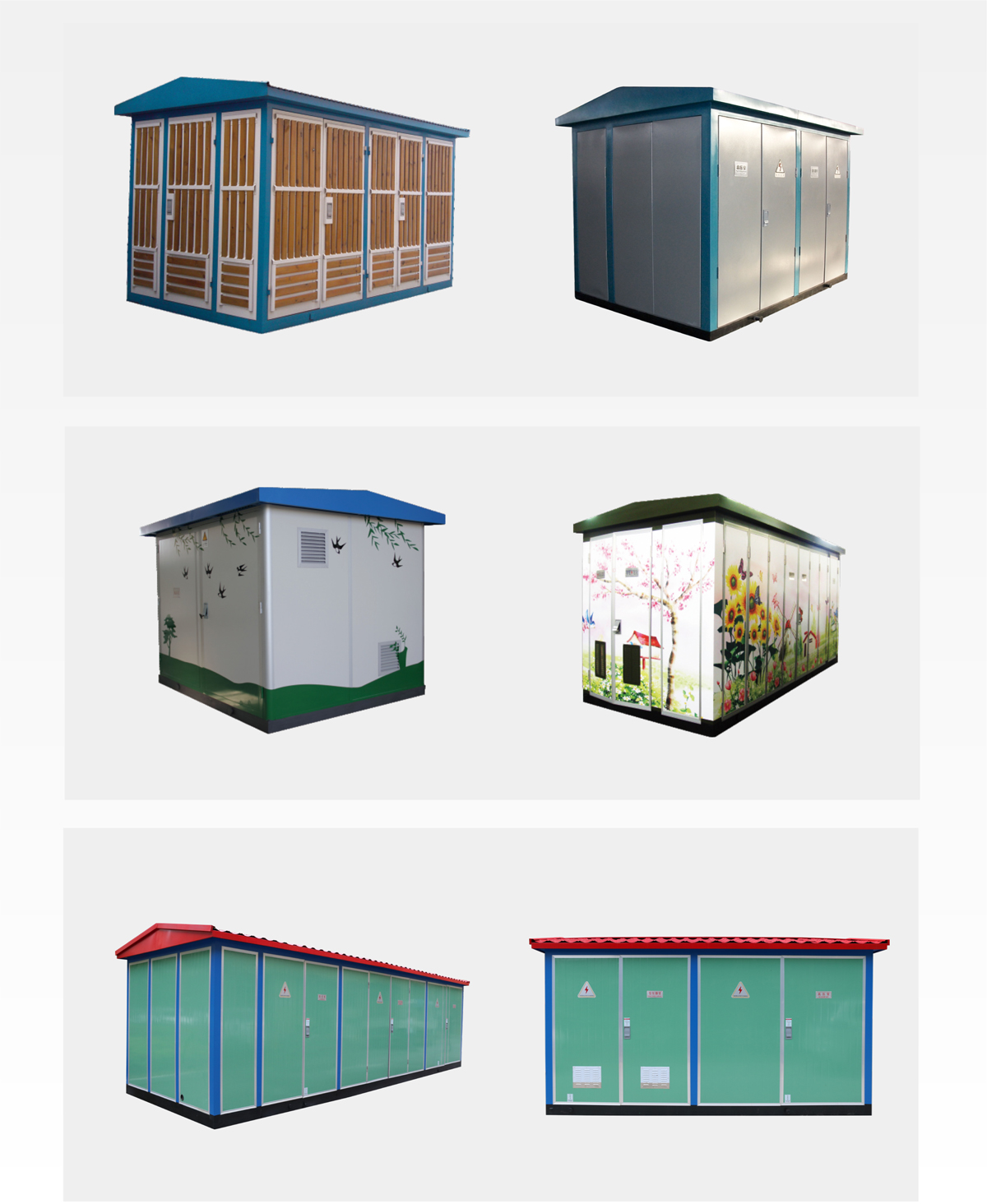

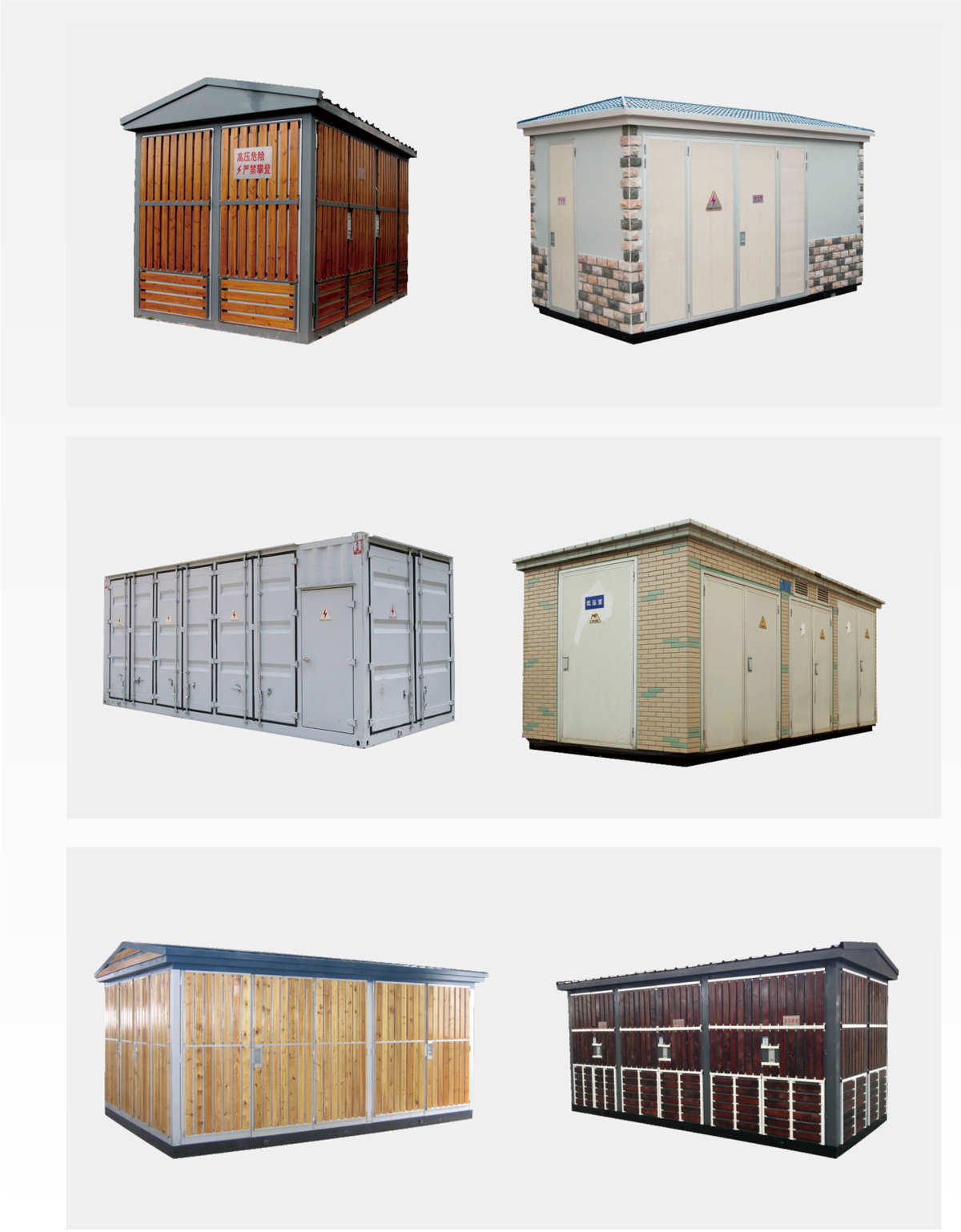

◇ Various types: universal, villa, compact, and other styles;

The high-voltage ring network cabinet can be equipped with network automation terminals (FTUs) to achieve reliable detection of short circuits and single-phase grounding faults, with the "four remote" function, facilitating the upgrading of distribution network automation.

正常使用条件  normal condition

◇ 海拔高度不超过1000m;

◇ 环境温度：-25℃ ~+40℃ ;

◇ 相对湿度：日平均值不大于95%, 月平均值不大于90%;

◇ 安装场所：无火灾、爆炸危险、导电尘埃、化学腐蚀性气体及剧烈震动的场所，若超出以上条件时，用户可与我公司协商。

◇ The altitude shall not exceed 1000m;

◇ Environmental temperature: -25 ℃ ~+40 ℃ ;

◇ Relative humidity: The daily average value shall not exceed 95%, and the monthly average value shall not exceed 90%;

◇ Installation site: A location free from fire, explosion hazards, conductive dust, chemical corrosive gases, and severe vibrations. If the above conditions are exceeded, users can negotiate with our company.

变压器  transformer

智能型一体化变电站选用低损耗、油浸式、全密封 S9、S10、S11 系列变压器，也可选用树脂绝缘或NOMEX 纸绝缘环保型干式变压器，底部可配有小车，变压器可方便地进出。

The intelligent integrated substation adopts low loss, oil immersed, fully sealed S9, S10, and S11 series transformers, and can also choose resin insulated or NOMEX paper insulated environmentally-friendly dry type transformers. The bottom can be equipped with a small car, and the transformer can be easily accessed.

高压侧  High voltage side

智能型一体化变电站高压一般采用负荷开关一熔断器组合电器保护，熔断器一相熔断后，三相联动脱扣，负荷开关有压气式、真空、六氟化硫等型式可选，可配电动操作机构，实现自动化升级；熔断器为高压限流熔断器，带撞击器，动作可靠，开断容量大，主要技术参数见下表。对于800kVA 以上的变压器，可选用QCE4, QCE2,QCE1 等真空断路器保护。

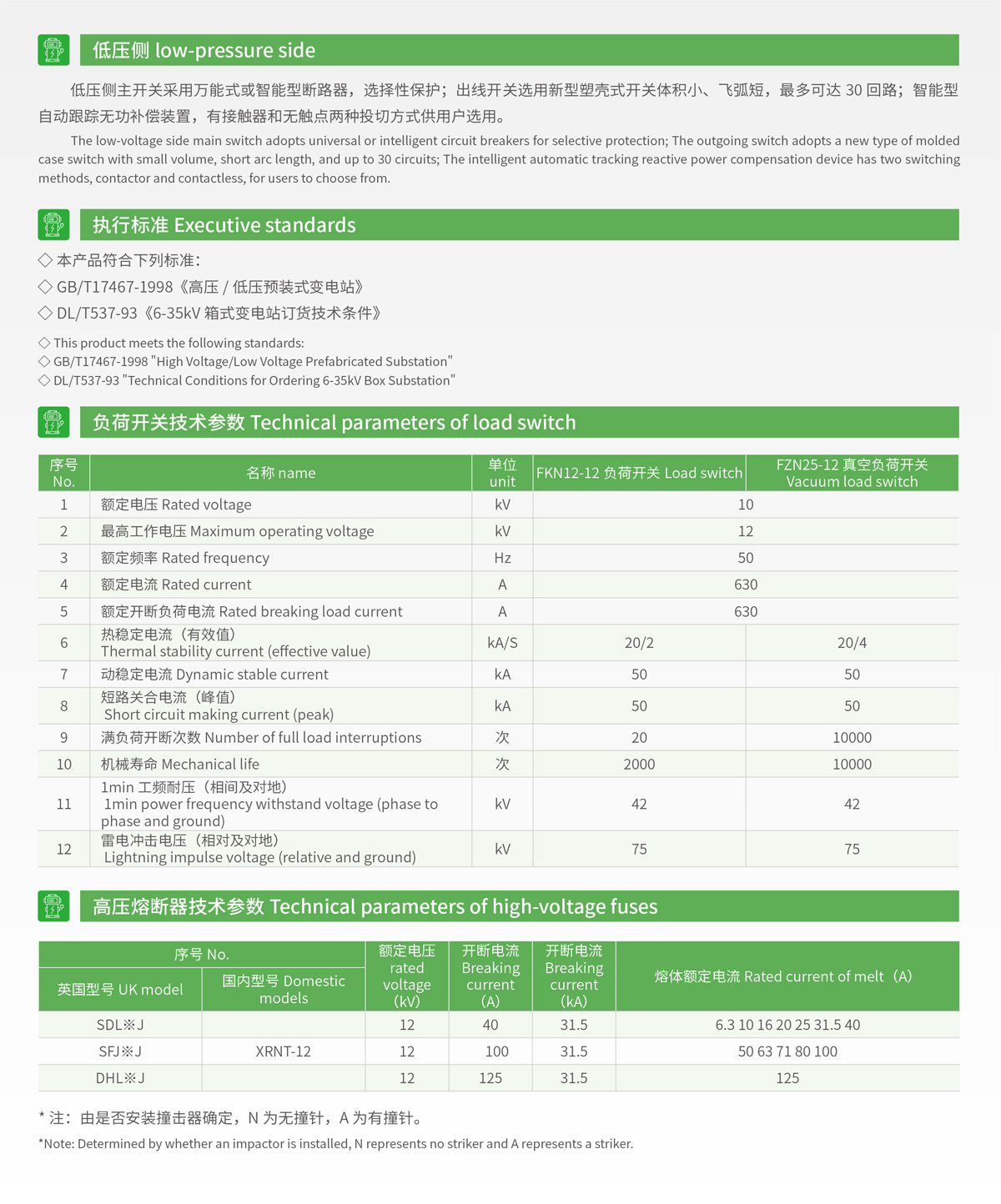

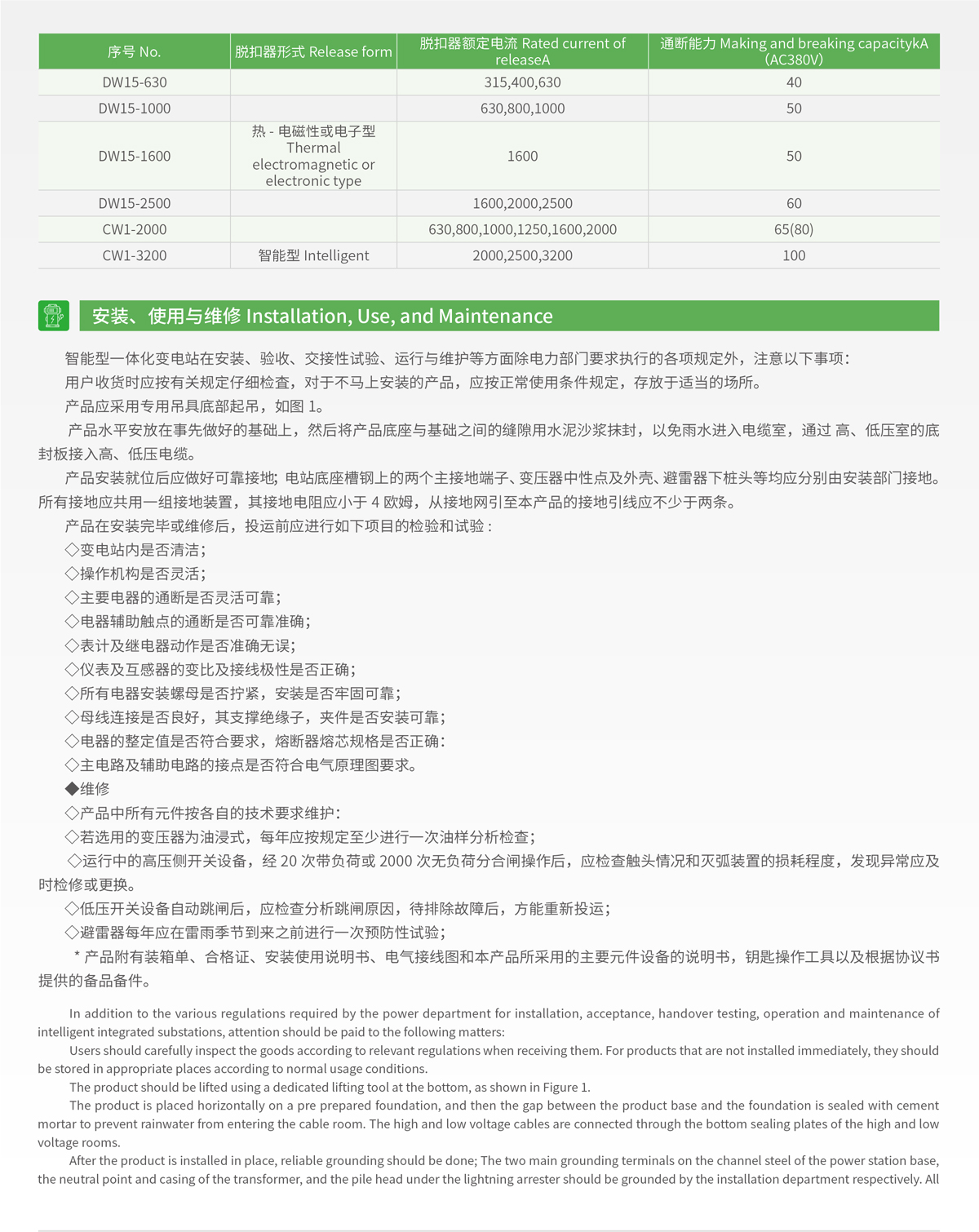

Intelligent integrated substations generally use a combination of load switch and fuse for high-voltage protection. After one phase of the fuse is fused, the three-phase linkage is tripped. The load switch is available in compressed air, vacuum, sulfur hexafluoride, and other types, and can be equipped with an electric operating mechanism to achieve automation upgrade; The fuse is a high-voltage current limiting fuse with an impactor, which is reliable in operation and has a large breaking capacity. The main technical parameters are shown in the table below. For transformers above 800kVA, vacuum circuit breakers such as QCE4, QCE2, and QCE1 can be used for protection.
